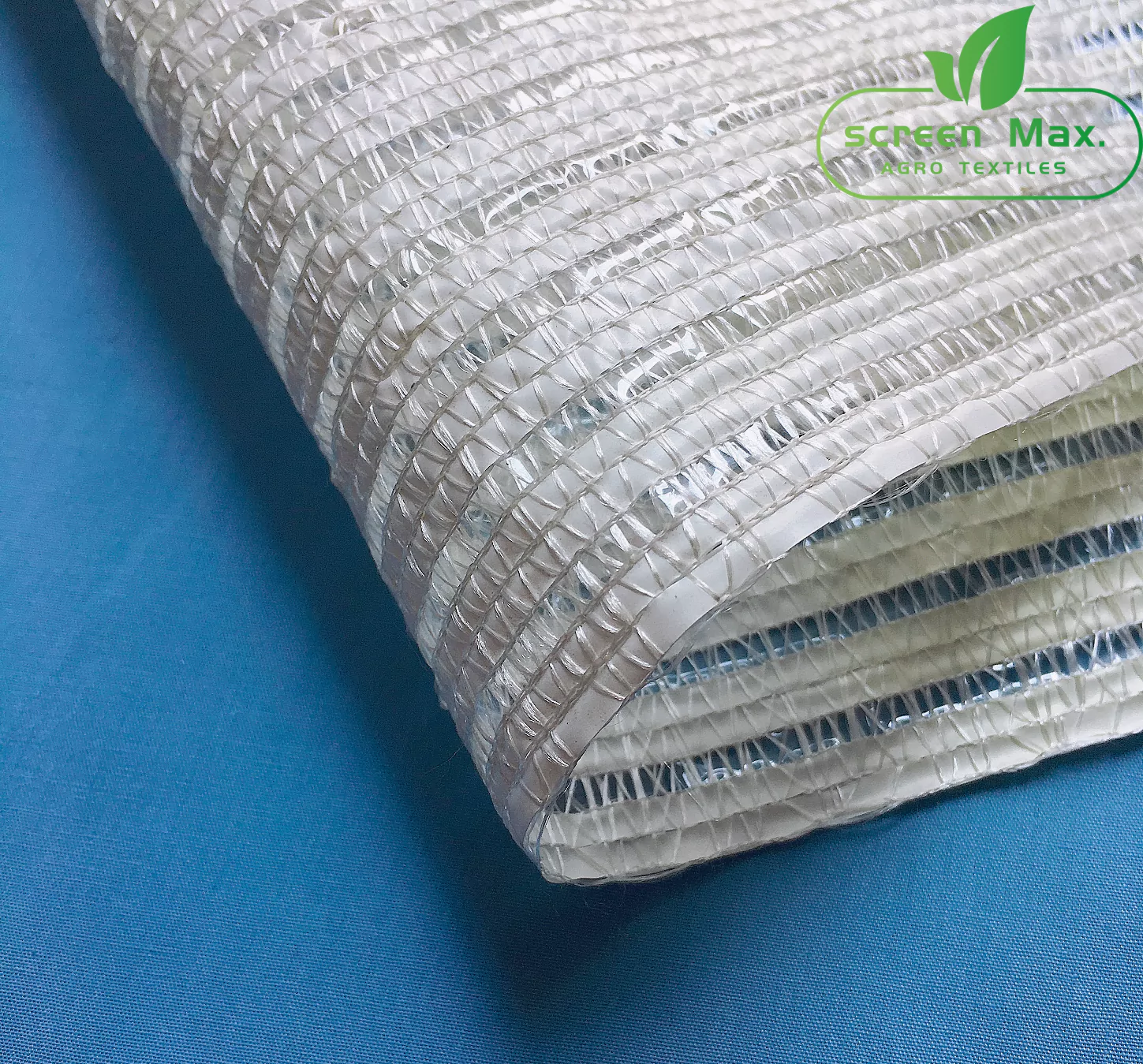

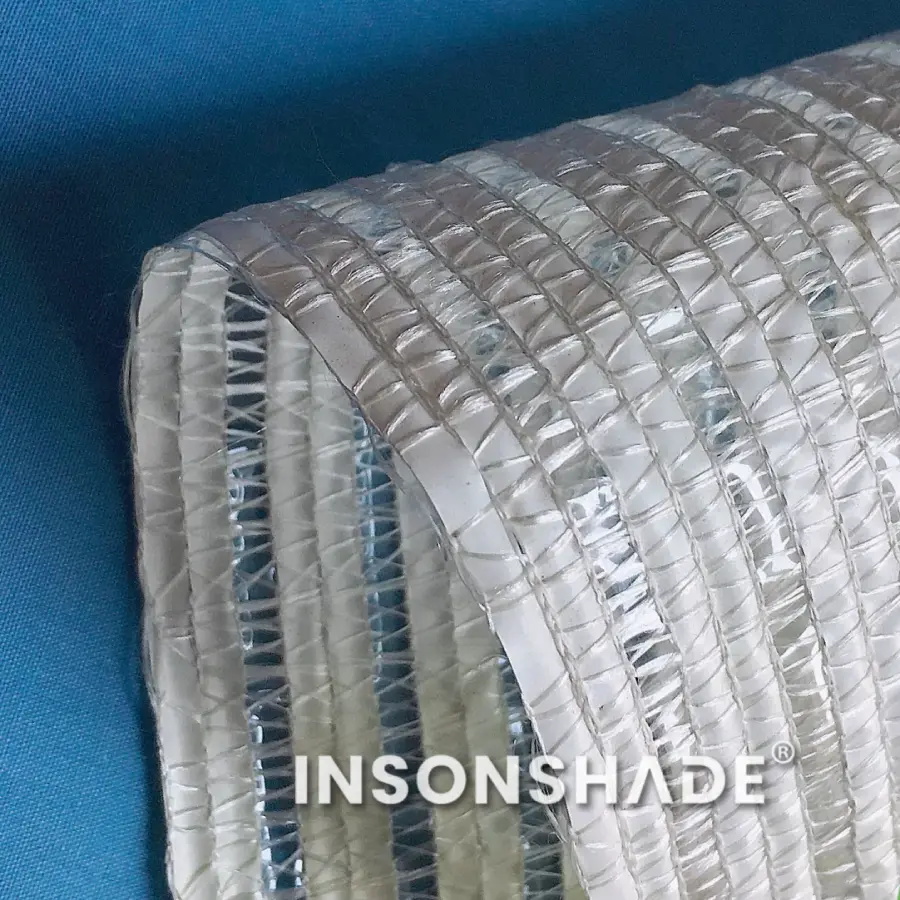

Light Scattering Shading Screen- LDS45-close

Enclosed structure of 50% light diffusion screen ensures a uniform distribution of light. The diffusion screen also allows better control of solar radiation and crop temperature, resulting in a better growing climate and higher yields.its made from INSONSHADE’s factory directly.

Description

Light scattering shading screen is make light be scattered, causing it to fall on the crop from all sides. The closed structure of the scattering climate screen ensures a uniform distribution of light. In addition, it can lock part of energy when the Greenhouse light Scattering curtain is turned on at night. The white scattered greenhouse diffusion screen also allows better control of solar radiation and crop temperature, resulting in a better growing climate and higher yields.

Technical parameter

Code Energy saving screen% Light transmission in sunlight% shading rate width of strips(mm) Shrinkage% weight of sqm (g/m2)
LDS45-close 47% 54% 46% 4  80°C 2hrs ≤ 1% 65+/-5
LDS50-close 15% 48% 52% 4  80°C 2hrs ≤ 1% 70+/-5
LDS60-close 45% 39% 60% 4  80°C 2hrs ≤ 1% 85+/-5
LDS70-close 45% 14% 70% 4 80°C 2hrs ≤ 1% 90+/-5
