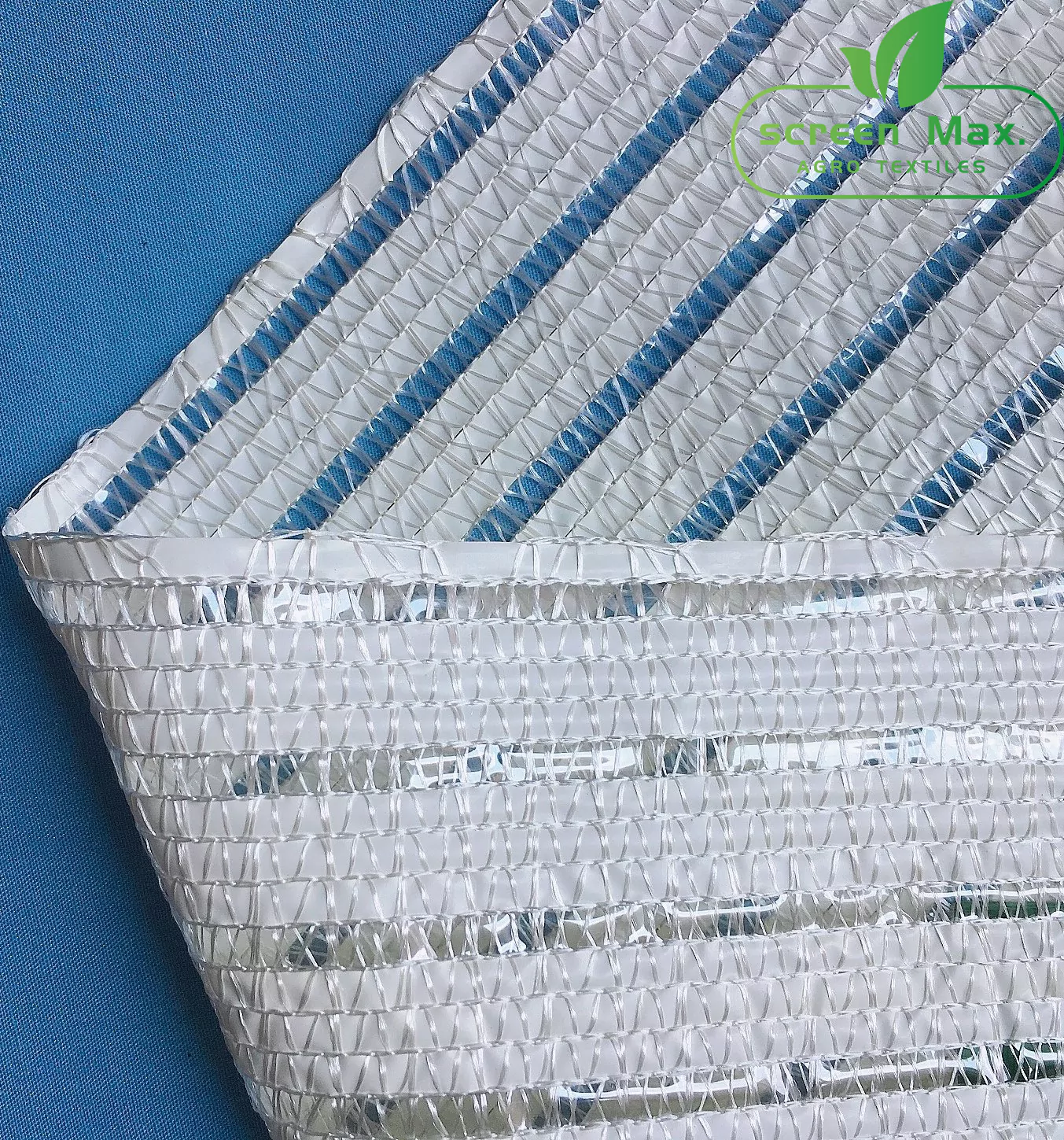

Scattering shade screen-SIW60-close

The SCREENMAX’s scattering shade screens , a further development of INSONSHADE’s Climate Screens range, provide shade and help spread light evenly.Enclosed structure of light diffusion screen ensures a uniform distribution of light. The screen also allows better control of solar radiation and crop temperature, resulting in a better growing climate and higher yields.

Description

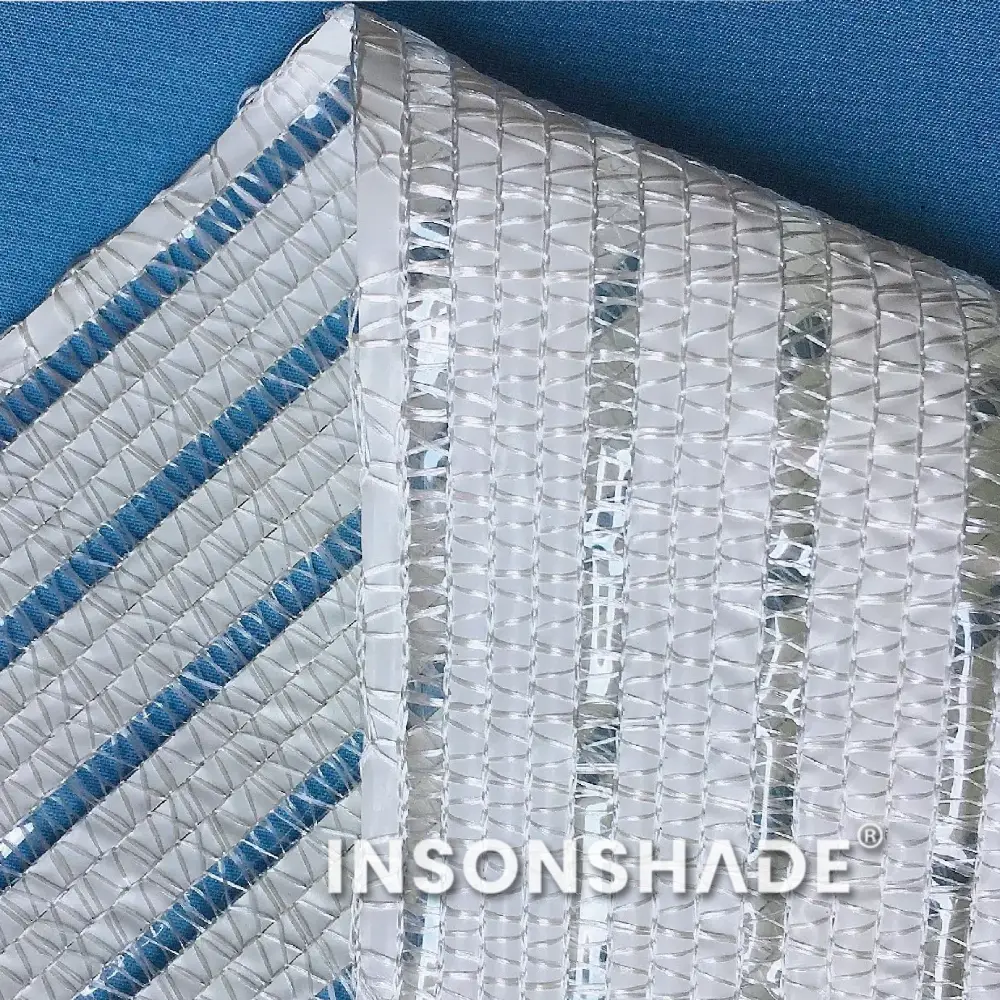

White light diffusion screen are widely used in commercial greenhouse as a way to limit the amount of direct sunlight that can disturb crops in the greenhouse.the closed structure of the scattering shade screens ensures a uniform distribution of light. The screen also allows better control of solar radiation and crop temperature, resulting in a better growing climate and higher yields.

White scattering shade screen includes open and closed structures, Open-hole structure facilitates ventilation.However,The closed structure is conducive to energy saving and heat preservation in the greenhouse when it is used at night



Technical parameter

        Code Energy savign % Light transmission in sunlight% shading rate width of strips(mm) Shrinkage% weight of sqm            (g/m2)
SIW45-close 47% 54% 46% 4  80°C 2hrs ≤ 1% 65+/-5
SIW50-close 15% 48% 52% 4  80°C 2hrs ≤ 1% 70+/-5
SIW60-close 45% 39% 60% 4  80°C 2hrs ≤ 1% 85+/-5
SIW70-close 45% 14% 70% 4  80°C 2hrs ≤ 1% 90+/-5
