Diffusing shading screen|climate screen-SIW50-close

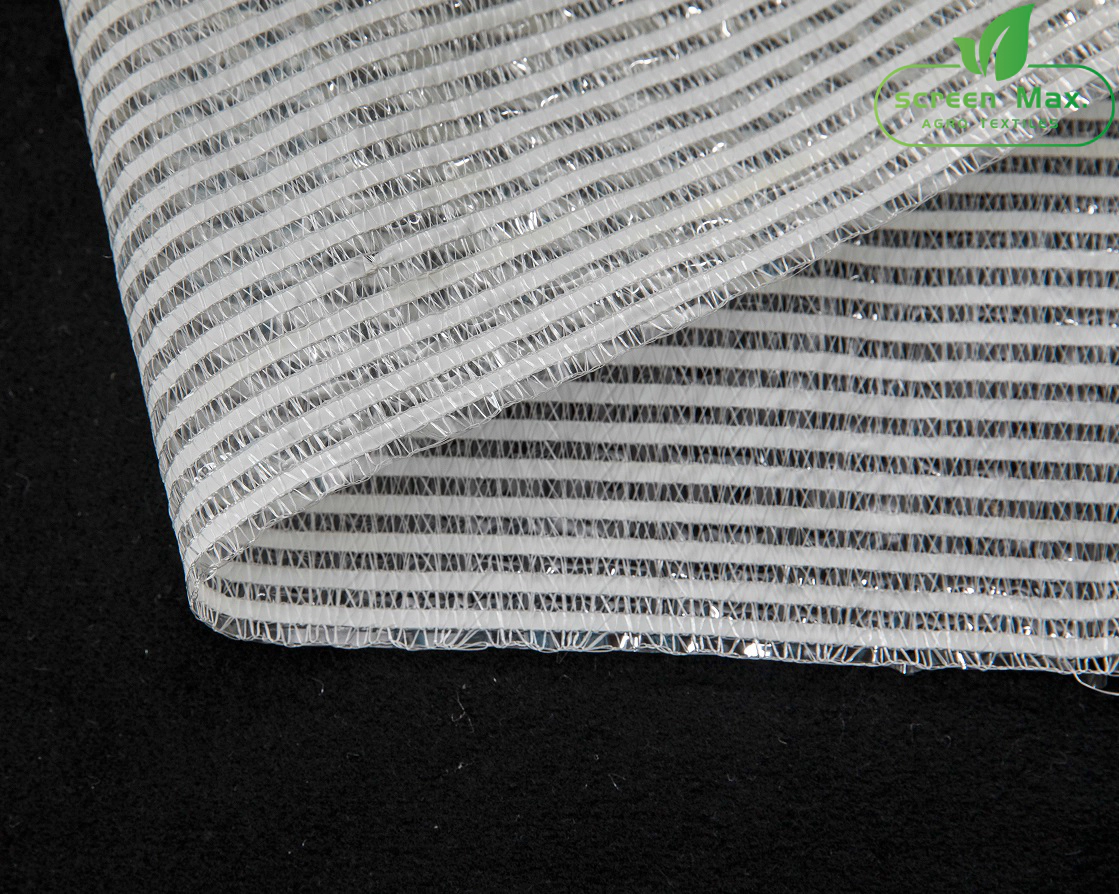

The SCREENMAX’s light-diffusing screen , a further development of INSONSHADE’s Climate Screens range, provide shade and help spread light evenly.Enclosed structure of light diffusion screen ensures a uniform distribution of light. The screen also allows better control of solar radiation and crop temperature, resulting in a better growing climate and higher yields.

Description

Diffusing shading screen is make light be scattered, causing it to fall on the crop from all sides. The closed structure of the light scattering screen ensures a uniform distribution of light.In addition, it can lock part of energy when Greenhouse light Scattering curtain  is turned on at night. The white scattered shading screen also allows better control of solar radiation and crop temperature, resulting in a better growing climate and higher yields.



Technical parameter

        Code Energy saving % Light transmission in sunlight% shading rate width of strips(mm) Shrinkage% weight of sqm            (g/m2)
SIW45-close 47% 54% 46% 4  80°C 2hrs ≤ 1% 65+/-5
SIW50-close 15% 48% 52% 4  80°C 2hrs ≤ 1% 70+/-5
SIW60-close 45% 39% 60% 4  80°C 2hrs ≤ 1% 85+/-5
SIW70-close 45% 14% 70% 4  80°C 2hrs ≤ 1% 90+/-5
